USB 4.3" 480x272 TFT LCD

Sample units are currently available in limited quantities.



Description

4.3" TFT display with USB interface for use with a PC or embedded devices with USB host. Thanks to the Hi-Speed USB interface used it is possible to stream video to the display.



Features

  • 4.3" 480x272 pixel resolution color TFT LCD
  • Hi-Speed USB interface 480 Mbps
  • Optional touchscreen
  • 16 bit colors
  • 8 MB framebuffer memory
  • Display can be updated up to 90 frames per second over USB (can be configured also for higher transfer rate than this if needed)
  • USB powered (current usage is about 220 mA with backlight at full brightness and USB data transfer in progress)

User Guide

http://www.lcdinfo.com/usbd480/documentation/USBD480_User_Guide_20090803.pdf

Old version: http://www.lcdinfo.com/usbd480/documentation/USBD480_User_Guide.pdf

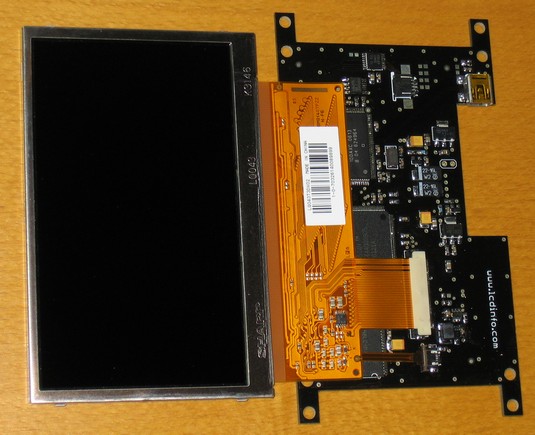

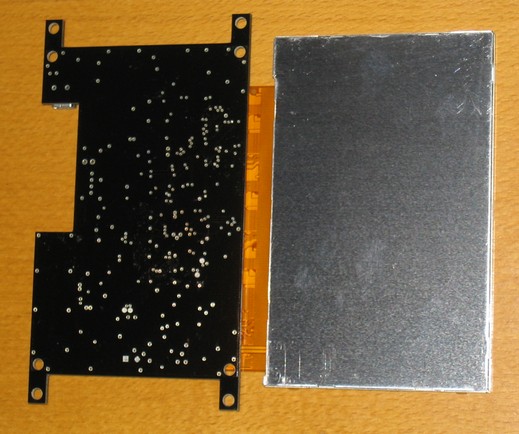

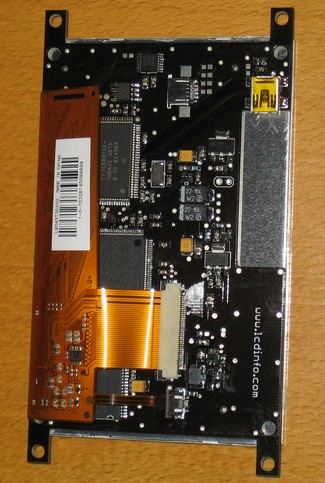

Picture of a prototype unit:

USBD480-LQ043 prototype



Dimensions:

Dimensions

http://www.lcdinfo.com/usbd480/documentation/USBD480-LQ043_dimension_drawing.pdf



3D model that can be rotated:

3D model

http://www.lcdinfo.com/usbd480/documentation/USBD480-LQ043_3d.pdf
















In the forum you can find more information and some example applications: http://forum.lcdinfo.com/viewforum.php?f=19

Customizing for other displays

Customized versions of the controller board for other displays are also possible. Currently there are prototypes with 320x240 QVGA and 640x480 VGA resolution panels but other resolutions are also possible.
