USBD480-NX43 USB 4.3" 800x480 TFT LCD

All models shown currently available from stock.

Description

4.3" TFT display with USB interface for use with a PC or embedded devices with USB host.

Features

• 4.3” 800 x 480 resolution IPS TFT LCD
• Optional capacitive touchscreen with multitouch
• Hi-Speed USB interface 480 Mbps
• Uses data compression to reduce required bandwidth
• 60 fps update rate possible
• USB powered
• USB Type-C connector
• Optional mounting tabs
• Capable of driving different kind RGB LED configurations. Supports multiple LED chains
• Currently LEDs are supported with SimHub software

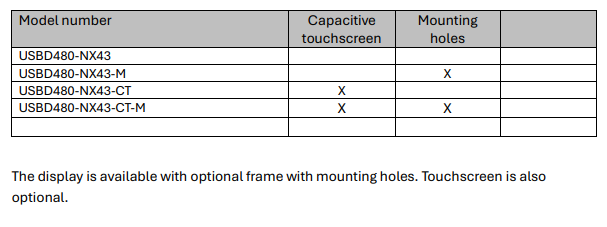

Models

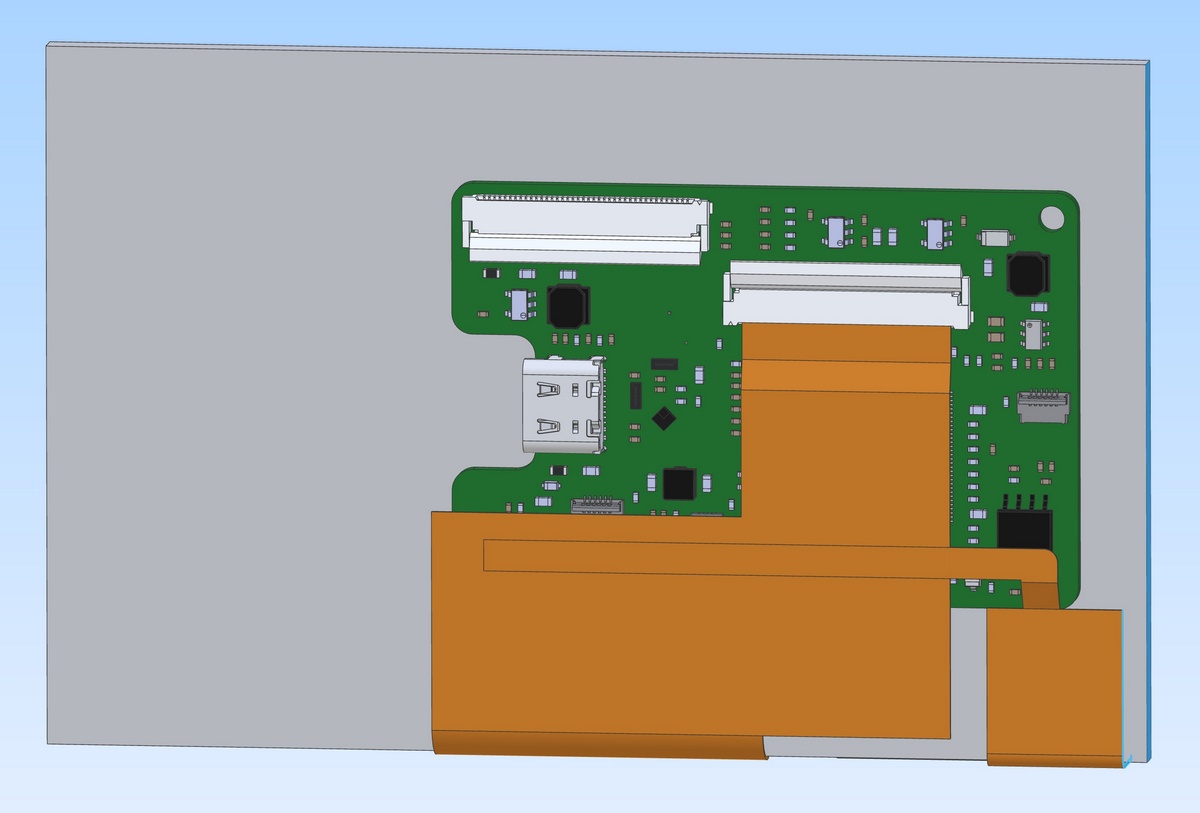

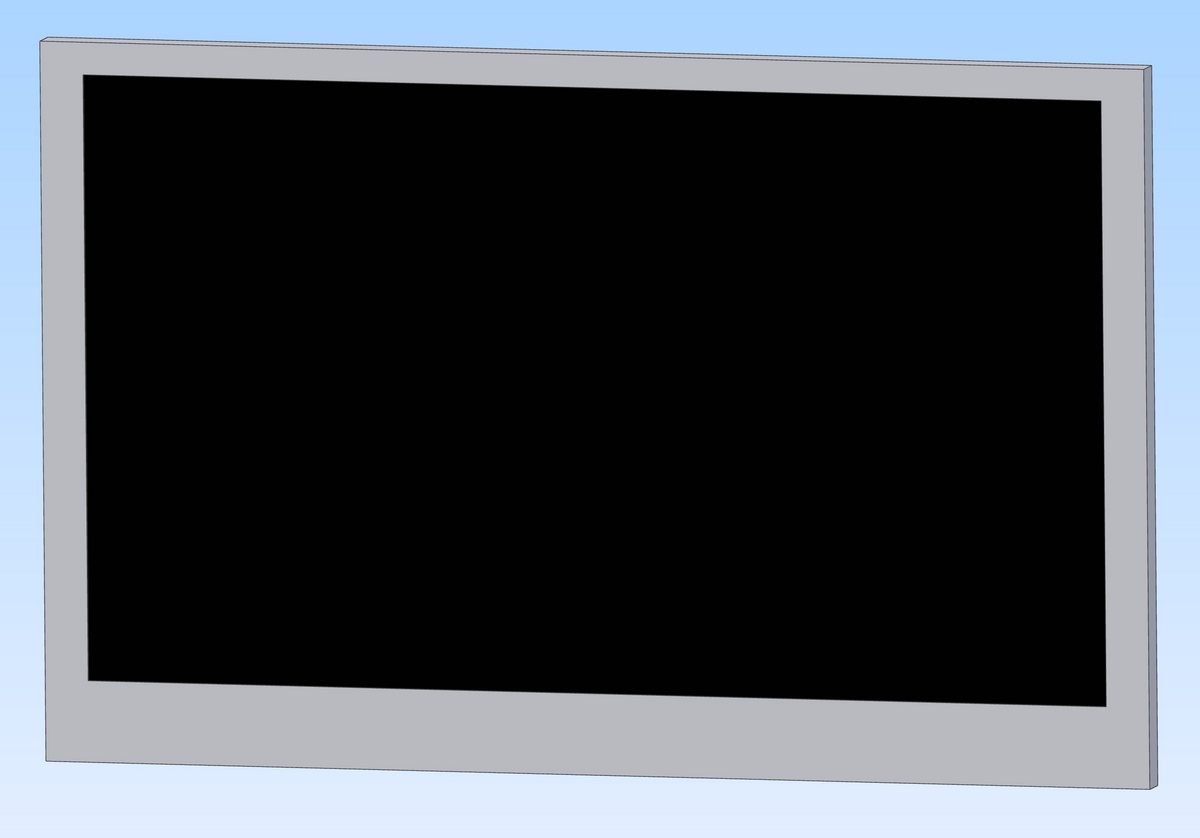

Base model (USBD480-NX43):

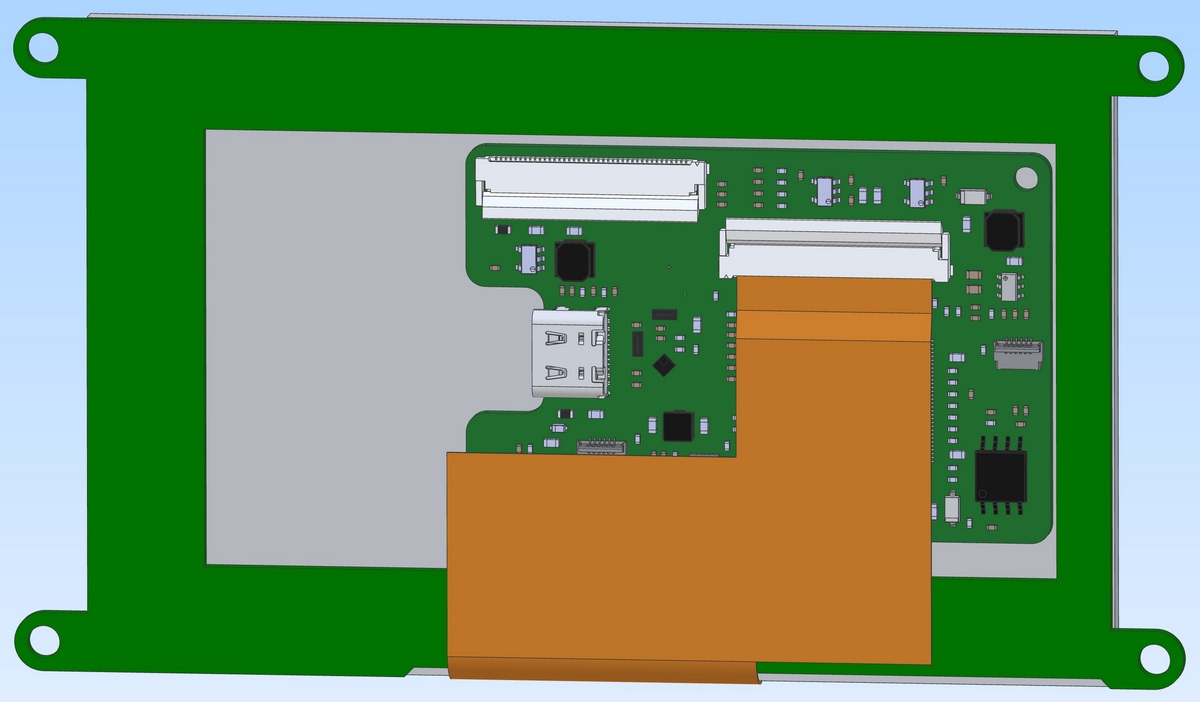

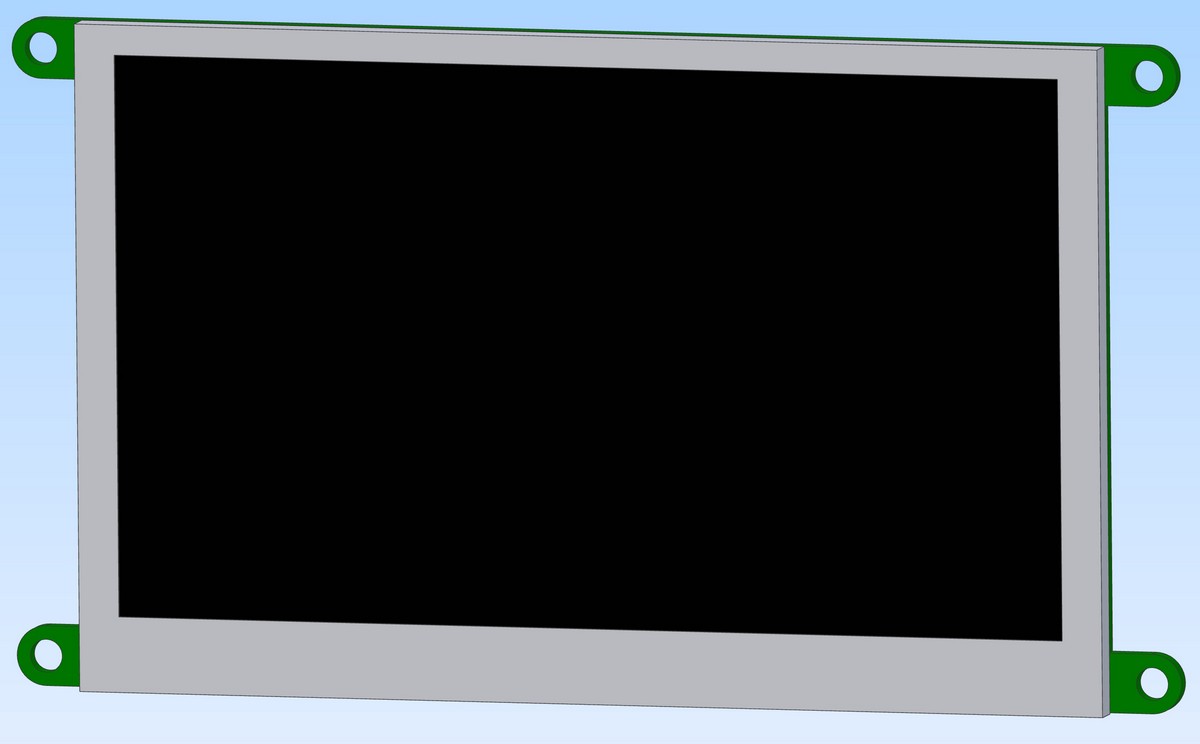

With mounting holes (USBD480-NX43-M):

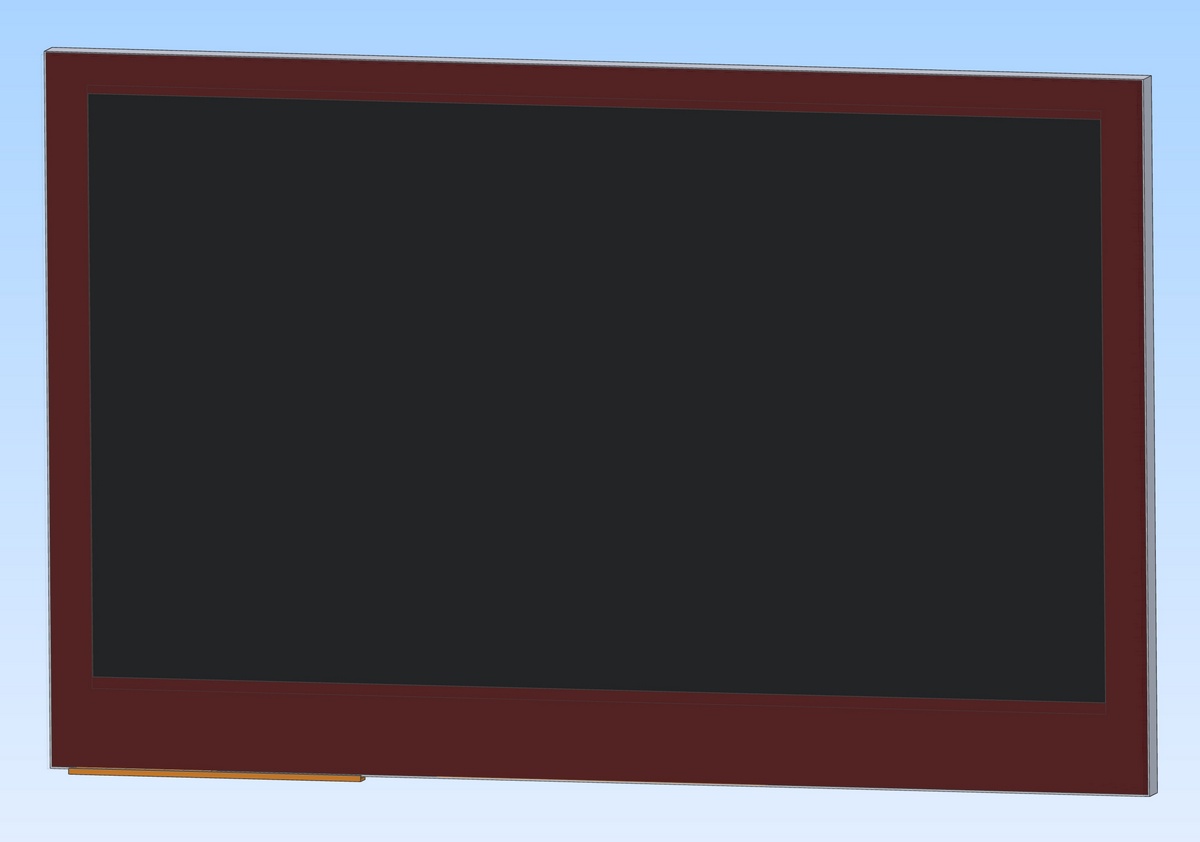

With touchscreen (USBD480-NX43-CT):

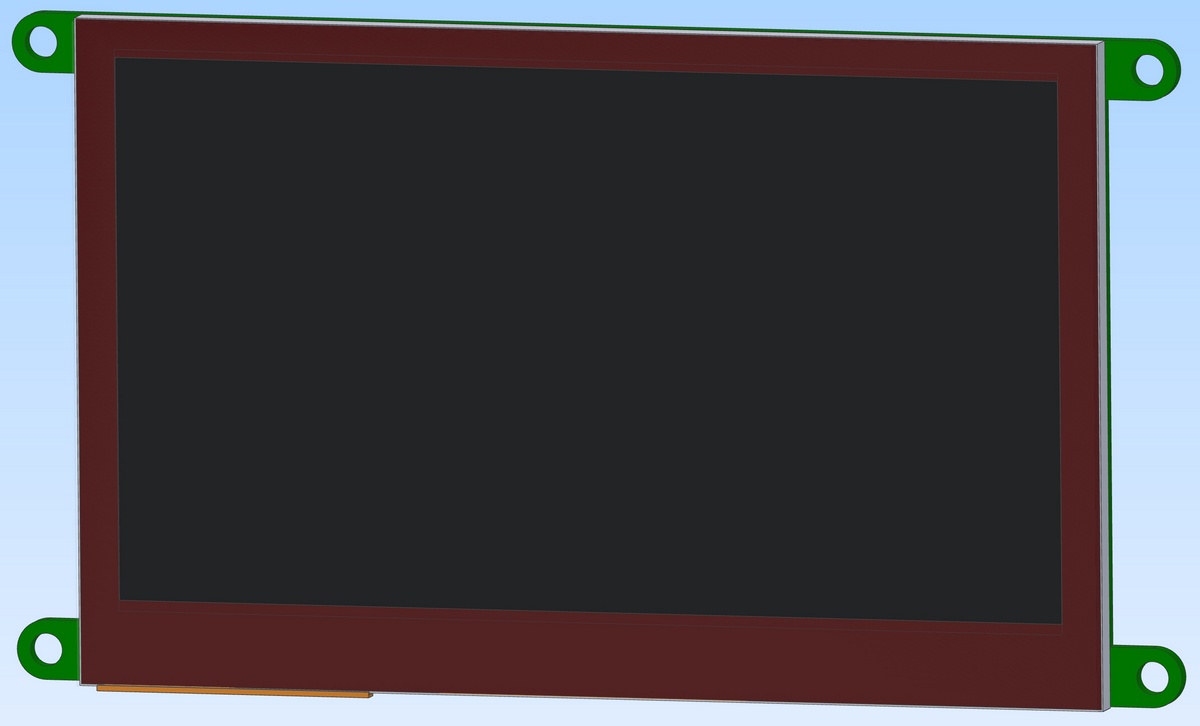

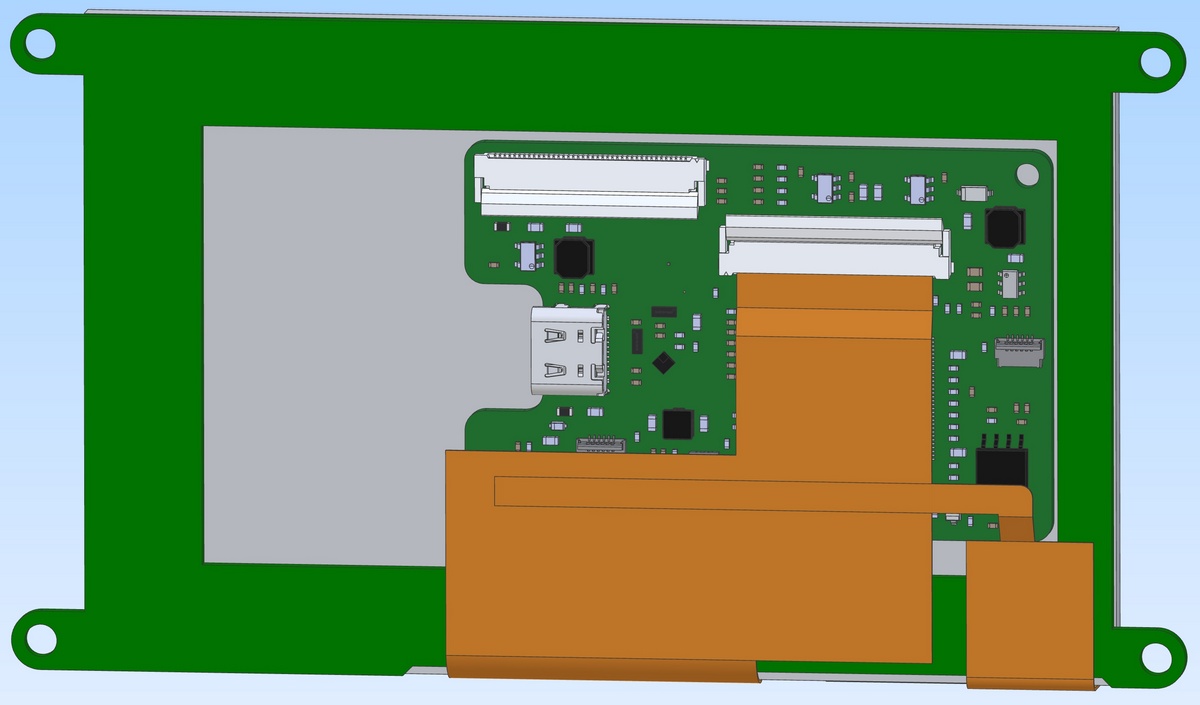

With touchscreen and mounting holes (USBD480-NX43-CT-M):

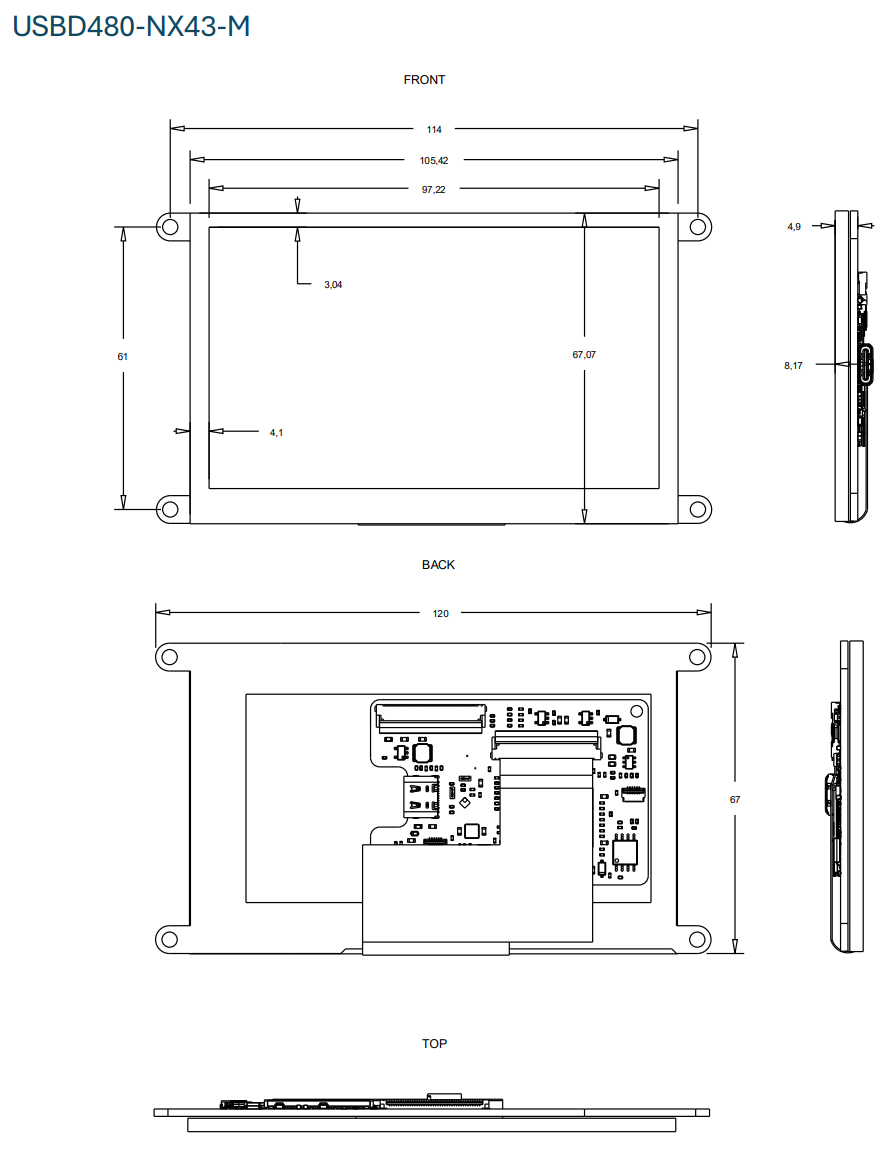

Dimensions

More details in the currently still incomplete documentation:

http://www.lcdinfo.com/usbd480/documentation/NX43 User Guide.pdf

3D model

Available

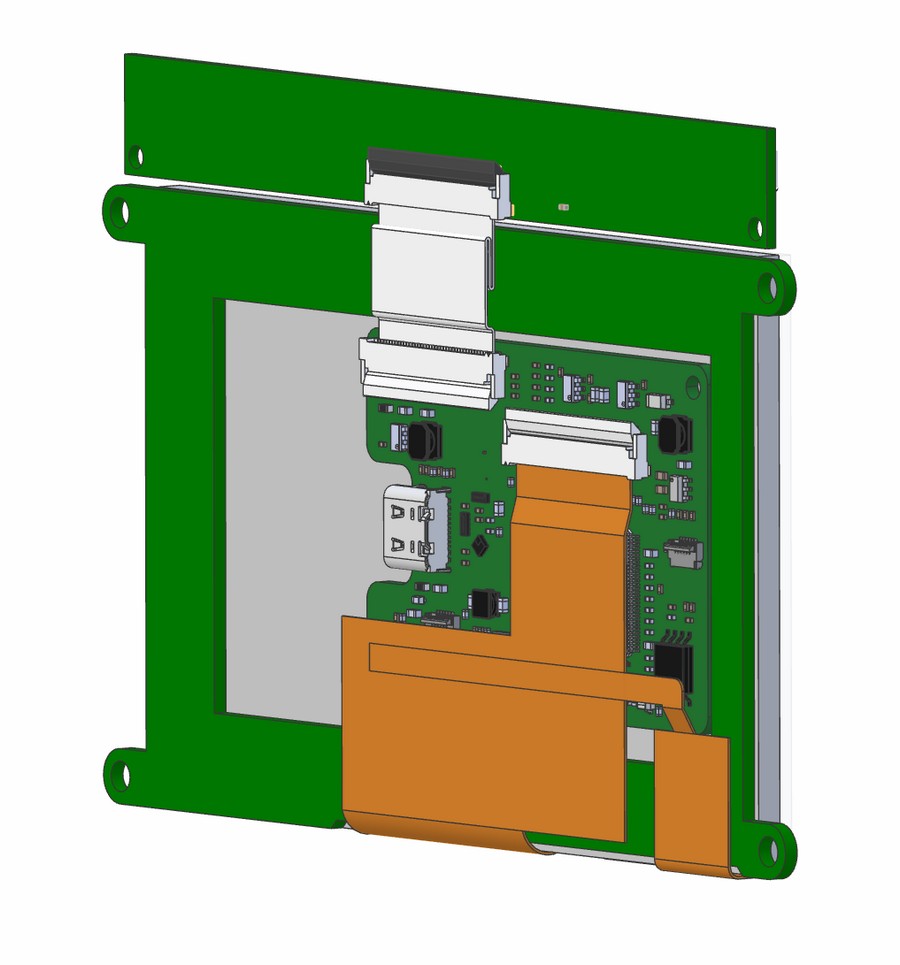

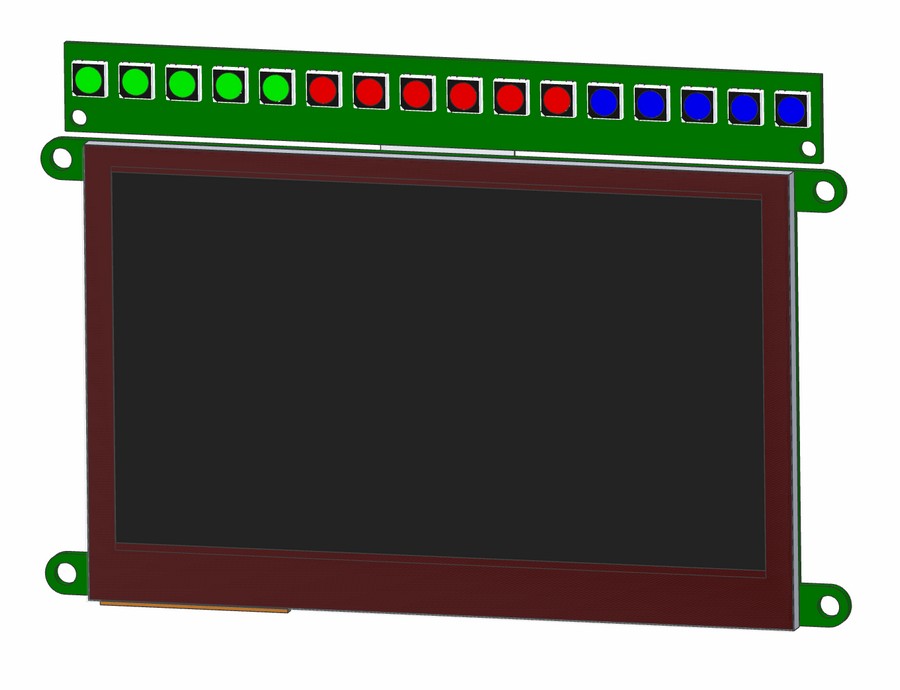

Example LED configuration

It is possible to design and supply custom LED configurations or customer can make their own.

Accessories for evaluating LED functionality

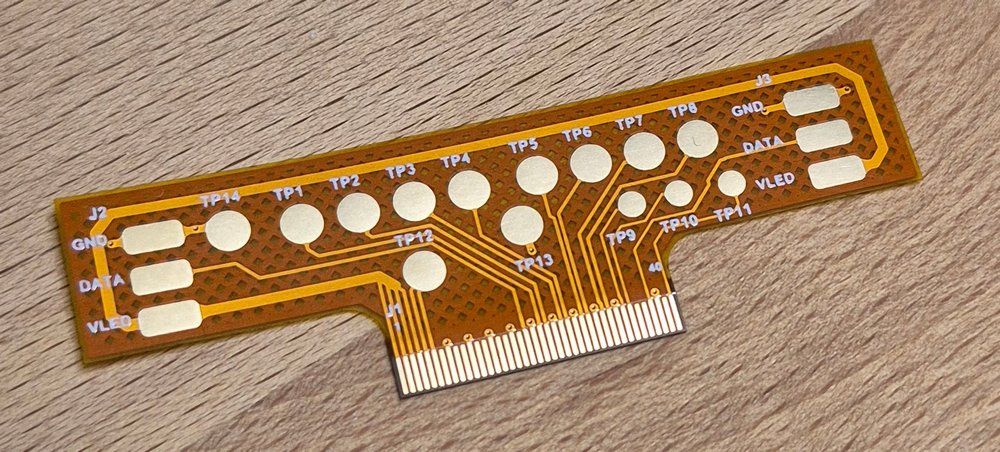

Flexible PCB breakout board for connecting a WS2812 type LED chain for easy testing and evaluation:

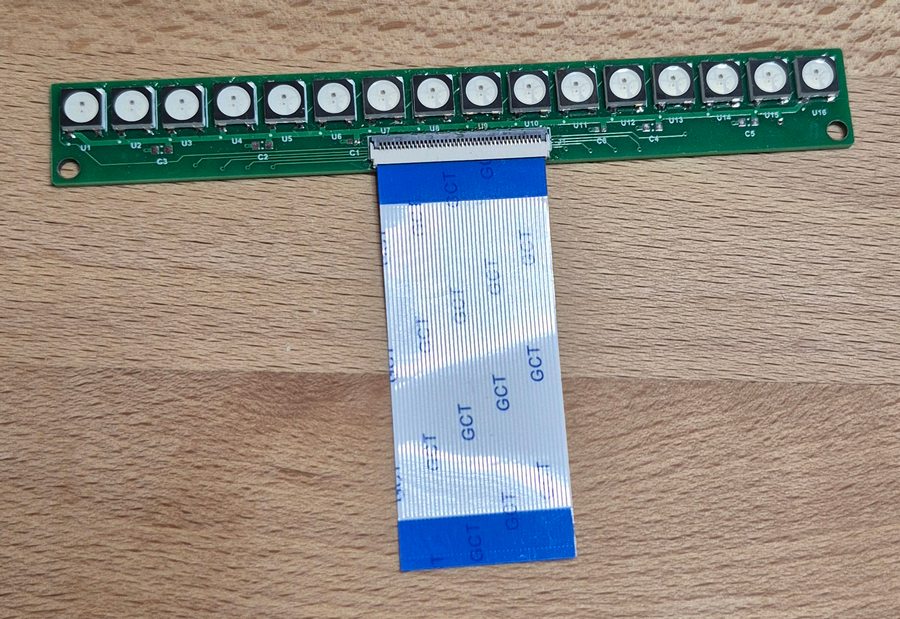

RGB LED evaluation board with FFC cable making evaluating the LED driving functionality quick and simple:
